PADESSignVisibleSignatureValve

Note

Signs pdf document according to PADES requirements. Additionally, the valve adds a visual representation of the signature on the last page of the document. The valve adds a pdf page as the last page to the document where all visual signatures will be added, if there are no previously added signatures.

Supports profiles B & LTA.

Properties

Name	Description	Default value	Mandatory	Supports property expansion
keyStoreID	Alias (certificateAlias) of the keystore used to sign.		Yes	Yes
pdfSourceData	Location of the B64 encoded pdf data.		Yes	Yes
pdfTarget	Name of the item attribute where to store the signed pdf document.		No	No
padesProfile	allowed values are B or lta	B	No	No
tsaUrl	URL of the TSA to use.		No	No
signText	Text to be visual in the pdf document signature		No	Yes
backDropImage	Path to an image used as backdrop for the signature, PNG required. The backdrop image file must be added manually to the target folder. If no path is specified, a minified visual signature will be used.		No	No
leftOffset	Left spacing of the visual signature	0	No	No
topOffset	Off set from the top for where the first signature should be placed	0	No	No
padding	Space between signatures	0	No	No
signingPage	Used to override the defualt signing page. The property is a path to a PDF document, where the first page will be used as signing page.		No	No
headingSignerText	Used to override default text for the heading linked to the signer	N/A	No	No
headingDateText	Used to override default text for the heading linked to the signed date	N/A	No	No
relaxRevocationIssuedTimestamp	Will allow more relaxed verification of revocation timestamps. Valid values: "true"/"false"	"false"	No	No
requireVisualSignature	A property for deciding what to do if a visual signature can not be added. If the service is unable to add a visual signature, the signature will fail if the property is set to `true`. If set to `false` only a digital signature will be added without a visual representation.	"true"	No	No

Example Configuration 1

 {
    "name" : "PADESSignVisibleSignatureValve",
    "enabled" : "true",
    "config" : {
        "keyStoreID" : "824d48cc-070e-44fc-8367-e6702385b095",
        "pdfSourceData" : "{{item.b64}}",
        "backDropImage" : "resources/defaults/signature_1200x183.png",
        "signText" : "{{item.signText}}",
        "padesProfile" : "lta",
        "tsaUrl" : "http://timestamp.digicert.com",
        "topOffset" : "35",
        "leftOffset" : "35",
        "padding" : "5",
        "pdfTarget" : "document",
        "requireVisualSignature" : "false"
    }
}

Example Configuration 2

{
    "name": "CreateShortTermKeyStoreValve",
    "enabled": "true",
    "config": {
        "subjectKeyParamater": "CN={{request.name}} ({{request.method}}),o=phenixid",
	"caTemplateKeyParamater": "35edf55c-e5c3-4743-babc-a9905f49b127",
	"keyUsage": [
	    "true",
	    "true"
	]
    }
},
{
    "name": "PADESSignVisibleSignatureValve",
    "enabled": "true",
    "config": {
        "keyStoreID": "{{item.keyStoreId}}",
        "pdfSourceData": "{{item.temporary}}",
        "signText": "{{request.name}} with {{request.method}}",
        "topOffset": "35",
        "leftOffset": "35",
        "padding": "5",
        "pdfTarget": "document"
    }
},

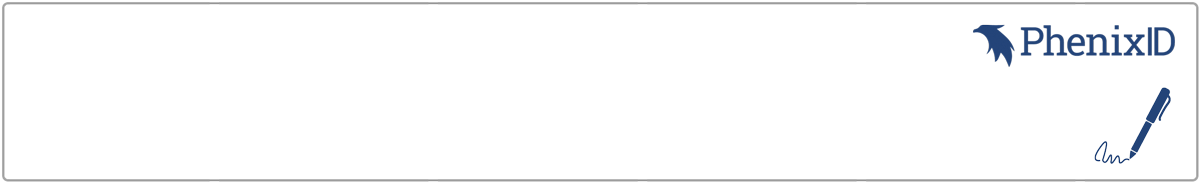

Backdrop

The backdrop image must have the size of 1200x183. Example of backdrop:

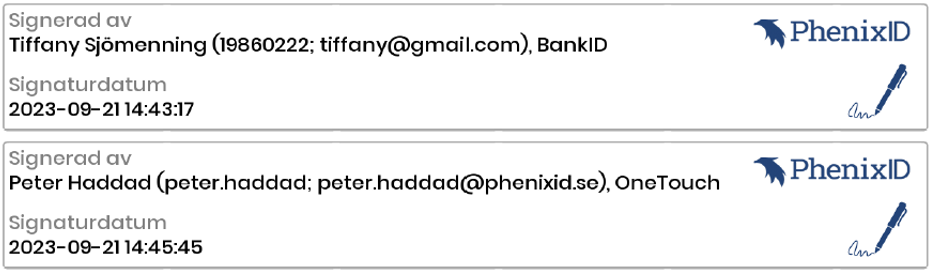

Signature

Example of how backdrop signatures will look:

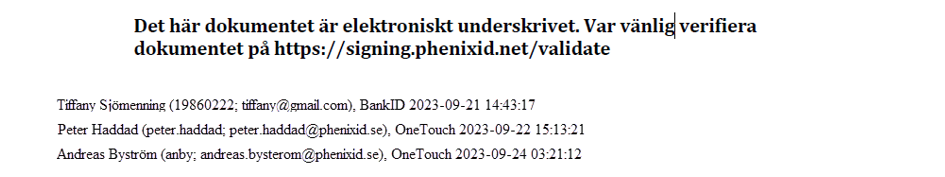

Minified visual signature

If no backdrop is specified, a minified version of the visual signature will be used. Example:

NoBackdropSignature
