Apache: mod_auth_openidc MFA and SSO with PhenixID Authentication Services

Warning

Please note, this document is using the legacy authenticators - in order to use the new protocol agnostic authenticators, you need to apply relevant modifications to the configuration examples outlined in this article.

Summary

This document will guide you through the steps to enable multi-factor authentication and Single-Sign On for the Apache 2.x authentication/authorization module mod_auth_openidc (https://github.com/zmartzone/mod_auth_openidc) using OpenID Connect to integrate with PhenixID Authentication Services.

mod_auth_openidc is an OIDC Relying party (RP) can be used to easily add strong authentication and authorization to any web application / page hosted on the Apache web server. (For example a simple html page or a tomcat web application).

System Requirements

PhenixID Authentication Server 3.2 or higher
Apache web server 2.x with php installed (on Linux OS. For Windows, a commercial agreement with zmartzone for mod_auth_openidc is required).
(For the simple example page protected below to work, PHP must be installed on the Apache server.)

Instruction

Overview

This document will guide you through the steps to enable multi-factor authentication and Single-Sign on for mod_auth_openidc.

Setup Relying Party trust on PhenixID Authentication Services

Login to Configuration Manager
Go to Scenarios->OIDC
Add a new Relying party
- client_id = rp
- client_secret = password
- redirect_uri = https://<apache server domain>/protected_by_oidc_rp.php/callback

Change <apache_server_domain> to suite your environment. Example: https://integration.phenixid.se/protected_by_oidc_rp.php/callback

Configure PhenixID Authentication Services as OpenID Connect Provider

Setup PhenixID Authentication Services as a OpenID Connect Provider, see the articles OpenID Provider and OpenID Provider
Use Authorization code flow.
Once done, if you need to change token attribute population, please do so below the Execution Flow tab.
Select Advanced->OIDC_OP
Locate the OpenID Connect Provider created in previous step.
Change the token_endpoint_auth_methods_supported to client_secret_post.
```
"token_endpoint_auth_methods_supported": [
"client_secret_post"
],
```
Click Stage changes and commit changes.
Go back to Scenarios->OIDC and find the OP created in previos step
Click View OP Discovery
Copy the URL of the page that just opened. This will be used in later step when configuring mod_auth_openidc.

Install mod_auth_openidc

Access the server running Apache using SSH
Run the command sudo apt-get install libapache2-mod-auth-openidc

(Follow any instructions that may follow)
Run the command sudo a2enmod auth_openidc to enable the new module
Run the command service apache2 restart to restart Apache to apply the new setting.

Configure mod_auth_openidc

(In this example below, the simple php page protected_by_oidc_rp.php is protected with OIDC RP authentication. Change this to suite your environment by changing the params OIDCRedirectURI and Location below. The OIDCRedirectURI value must also be added to the PAS RP Trust (allowed redirect uris)

Open the Apache main configuration file (httpd.conf or httpd-ssl.conf).

Add this to the configuration:

OIDCProviderMetadataURL https://demo.phenixid.net/oidc/.well-known/openid-configuration
OIDCClientID rp
OIDCClientSecret password
OIDCCryptoPassphrase ChangeThisToAnyValueOfYourChoice
OIDCRedirectURI https://integration.phenixid.se/protected_by_oidc_rp.php/callback
OIDCResponseType code
OIDCScope "openid"
OIDCSSLValidateServer Off
OIDCPassClaimsAs environment
OIDCClaimPrefix USERINFO_
OIDCPassIDTokenAs payload

<Location "/protected_by_oidc_rp.php">
Require valid-user
AuthType openid-connect
</Location>

Change the values for:

OIDCProviderMetadataURL
OIDCCryptoPassphrase(this can be set to any value. Just generate a random value and use that)
OIDCRedirectURI

to suite your environment.

Save the changes and restart Apache

Add test page to Apache

Create a new file, /var/www/html/protected_by_oidc_rp.php`

Add this content:

<html>
      <body>
         <h1>If you can see this, the OIDC login procedure was successful.</h1>
       <a href="/protected_by_oidc_rp.php/callback?logout=%2Findex.html">Logout</a>
         <H2>OIDC ID TOKEN PAYLOAD:</H2>
         <pre><?php echo str_replace(' ', '&nbsp;', (json_encode(json_decode($_SERVER['OIDC_id_token_payload']), JSON_PRETTY_PRINT | JSON_UNESCAPED_SLASHES))); ?> </pre>
         <H2>All content</H2>
         <pre><?php print_r($_SERVER); ?></pre>
      </body>
</html>

Save the file.

Test

Browse to https://<apache server domain>/protected_by_oidc_rp.php/callback
You should now be redirected to the PhenixID Authentication Services OpenID Connect Provider
Authenticate

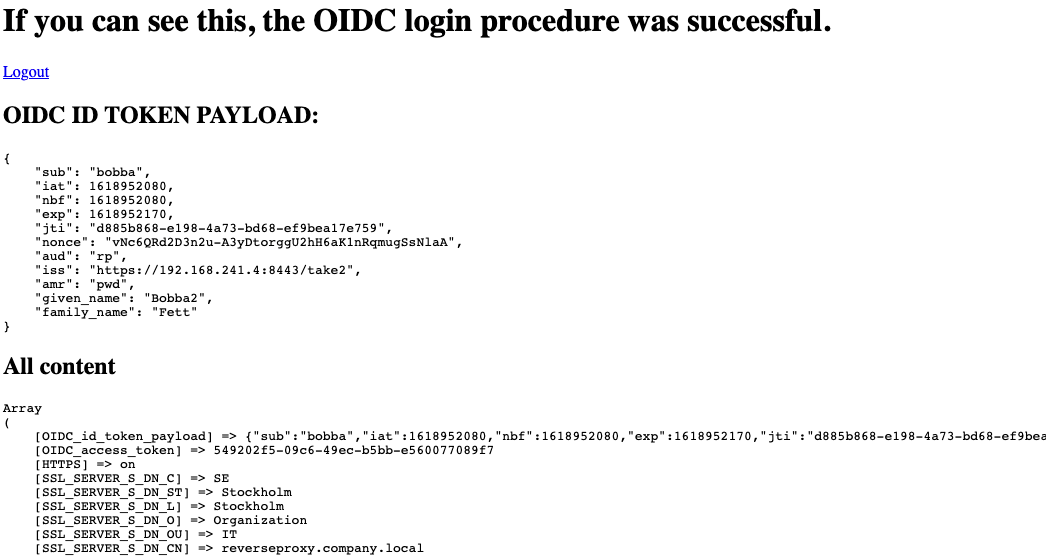

This page should now be presented.

The value of OIDC_id_token_payload should contain the id_token claims.

Troubleshooting

If error message is presented on PhenixID Authentication Services page, please check server.log for details.
If error message is presented on the OIDC RP, check Apache logs for errors.
If an error message regaring token type is displayed on the OIDC RP, please add the property “token_type: Bearer” to the token endpoint execution flow.
