MS Exchange SSO with PhenixID Authentication Services

Summary

This document will guide you through the steps to provide Single-Sign-On to the Outlook web access (OWA) application using SAML with PhenixID Authentication Services as SAML IdP.

System Requirements

PhenixID Authentication Services 2.0 or higher
Microsoft Active Directory
Active Directory test user with exchange mailbox. userPrincipalName attribute must be set on the test user.
Test user in LDAP user store. Add attribute on user with corresponding Active Directory userPrincipalName attribute value.
Microsoft Active Directory Federation Services (ADFS),
- ADFS is only used to translate SAML tickets to WS-Federation tickets (claims)
Windows Identity Foundation
Microsoft Exchange 2010 SP2 installed and configured

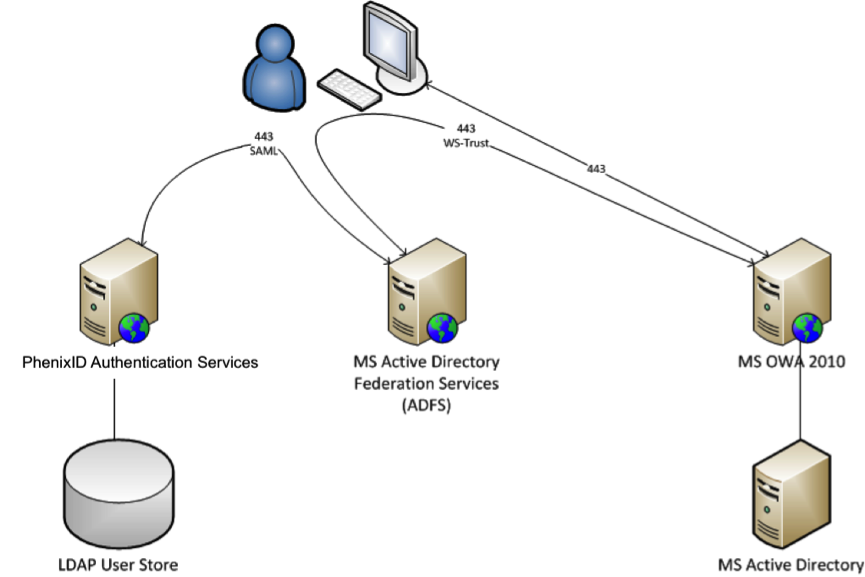

Overview

Untitled

Instruction

Domains used in this example:

ADFS domain: https://adfs.phenixid.local
PhenixID Authentication Services domain: https://phid.phenixid.local:8443
OWA domain: https://192.168.0.45
Active directory domain: phenixid.local

Setup PhenixID Authentication Services as a SAML IdP.
Configure PhenixID Authentication Services to send userprincipalname as nameID.
Download SAML IdP Metadata as a file.
Open ADFS 2.0 Management
Click “Claim providers"
Select “Import data about the claims provider from a file"
Point to downloaded metadata file

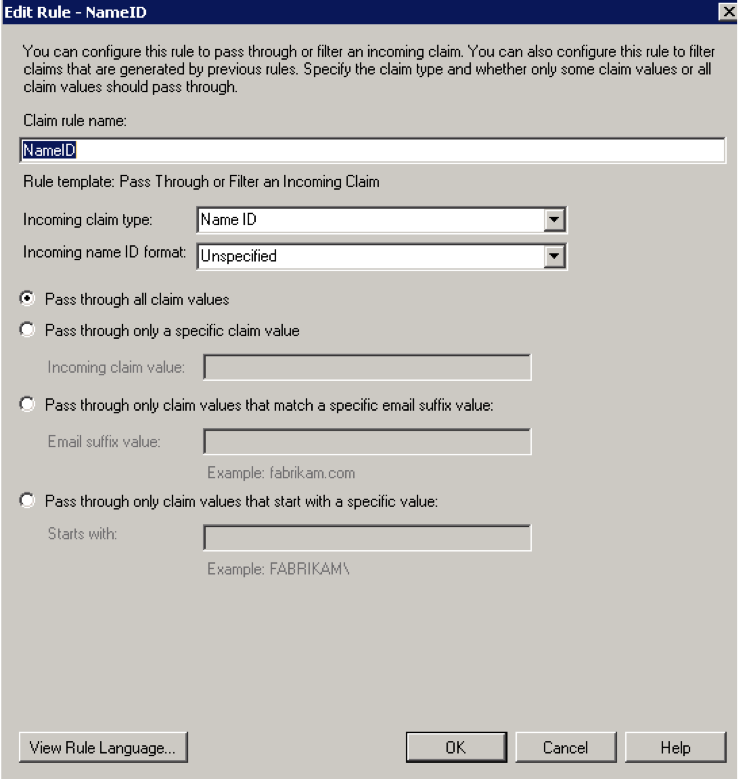

Add claim rule for Claims provider:
Click OK.
Download Windows Identity Foundation (http://www.microsoft.com/en-us/download/details.aspx?id=17331) and install on the MS Exchange server

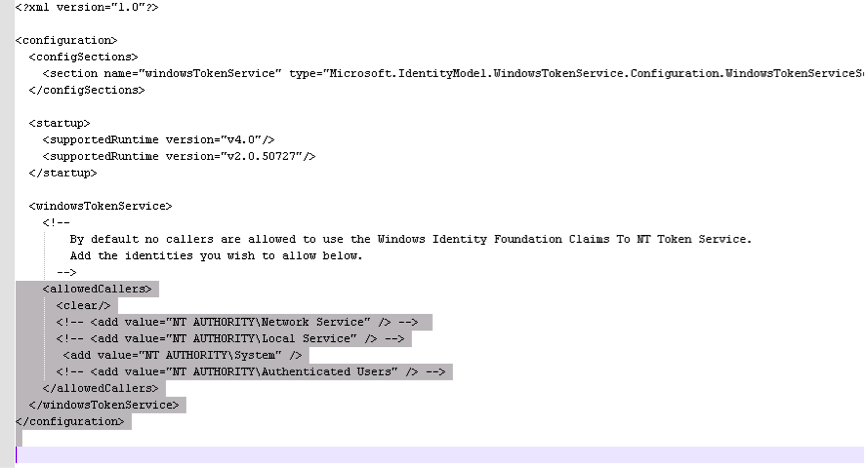

Open “C:\Program Files\Windows Identity Foundation\v3.5\c2wtshost.exe.config"
Unmark <add value="NT AUTHORITY\System" />
Save and close the file
Open “Services" on the MS Exchange server
Start the service “Claims to Windows token service"
Open Exchange management console

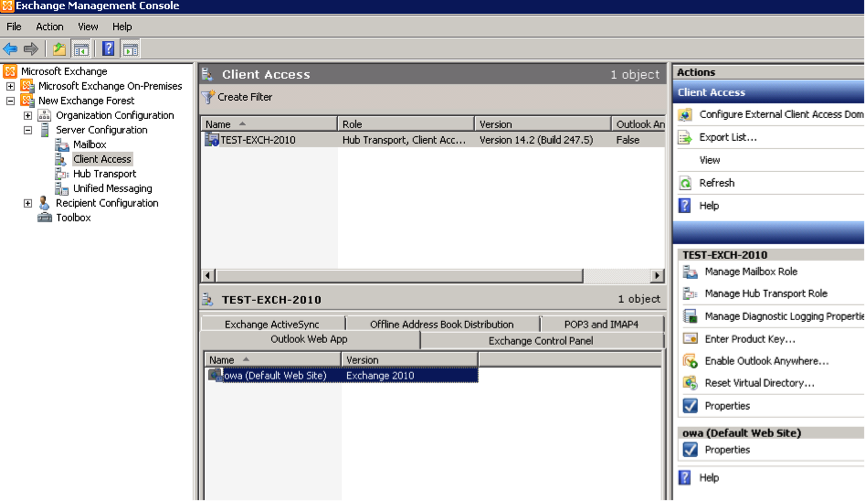

Go to “Client access", click “owa (Default web site)" and click “Properties"

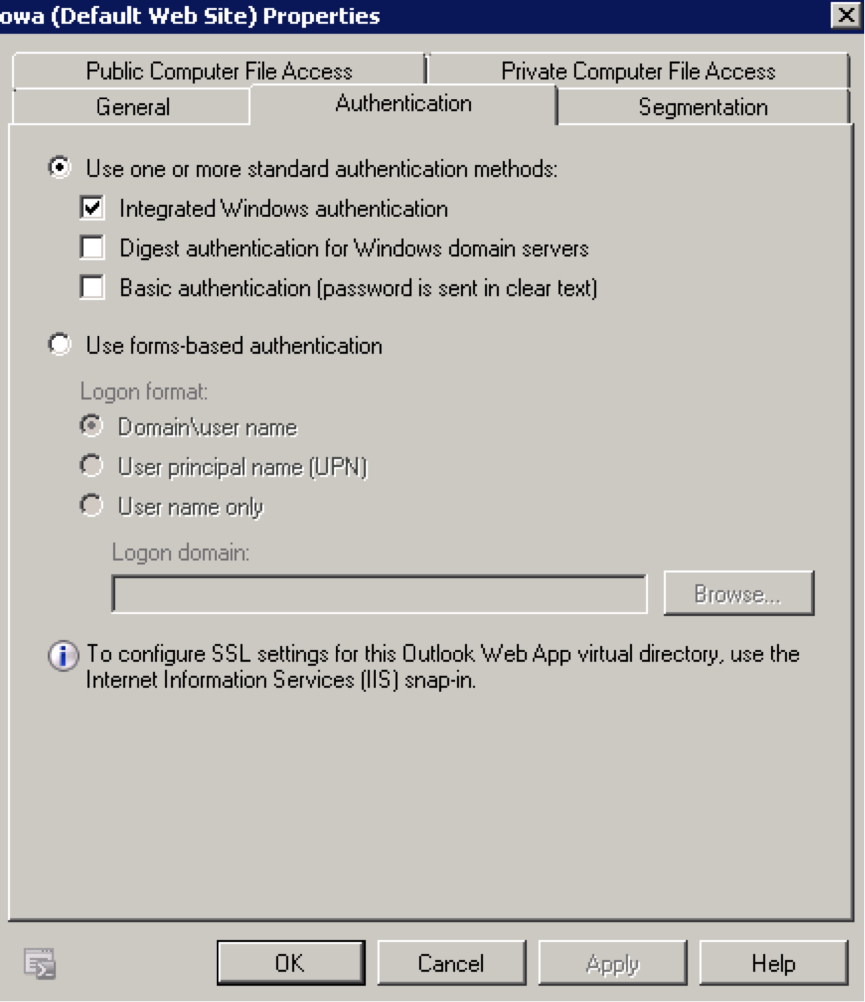

Click “Authentication" and select “Integrated Windows authentication"
Download Windows Identity Foundation SDK 3.5 (http://www.microsoft.com/en-us/download/details.aspx?id=4451) and install on the MS Exchange server

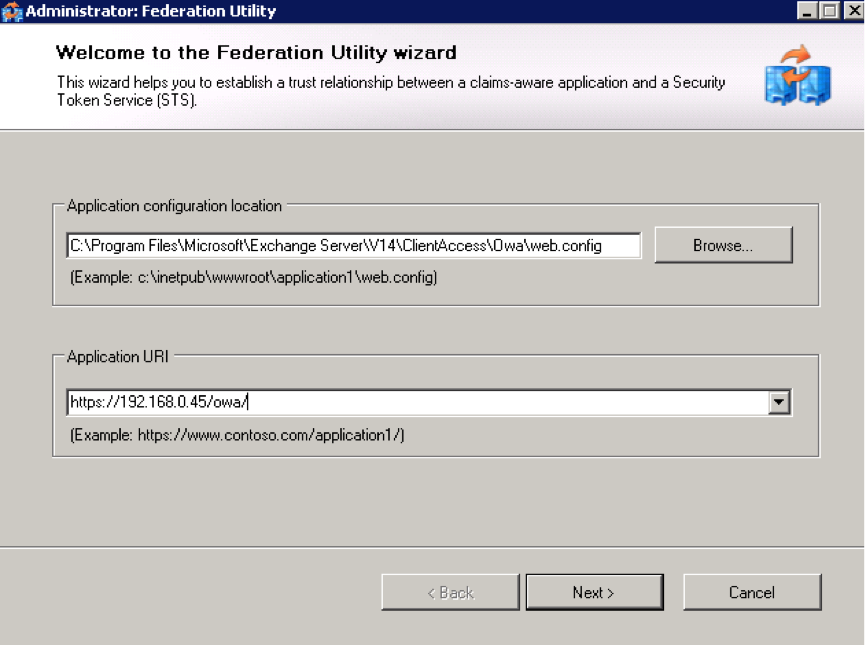

Run c:\Program Files (x86)\Windows Identity Foundation SDK\v3.5\fedutil.exe
Point to the OWA web application web.config file. Enter the OWA web application URI
Select “Use an existing STS". Enter the federation metadata url to the ADFS server.

(https://<adfs_domain>/FederationMetadata/2007-06/FederationMetadata.xml). In the example below https://adfs.phenixid.local/FederationMetadata/2007-06/FederationMetadata.xml.
Set certificate chain validation according to your environment
Set encryption value according to your environment.
Open “C:\Program Files\Microsoft\Exchange Server\V14\Client Access\Owa\web.config"
Comment out the <protocolMapping> tags

Change WIF modules in configuration –>system.webServer –> modules:

Before

<modules>
   <add type="Microsoft.Exchange.Clients.Owa.Core.OwaModule, Microsoft.Exchange.Clients.Owa" name="OwaModule" />
   <add name="exppw" />
</modules>

After

<modules runAllManagedModulesForAllRequests="true">
   <add name="WSFederationAuthenticationModule" type="Microsoft.IdentityModel.Web.WSFederationAuthenticationModule, Microsoft.IdentityModel, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="managedHandler" />
   <add name="SessionAuthenticationModule" type="Microsoft.IdentityModel.Web.SessionAuthenticationModule, Microsoft.IdentityModel, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="managedHandler" />
   <add type="Microsoft.Exchange.Clients.Owa.Core.OwaModule, Microsoft.Exchange.Clients.Owa" name="OwaModule" />
   <add name="exppw" />
</modules>

Force users to be authenticated.

configuration-> system.web –> Change the authorization tag to:
```
<authorization>
   <deny users="?" />
</authorization>
```
Enable UPN.

configuration –> system.serviceModel –> bindings –> ws2007FederationHttpBinding –> binding –> security –> message –> claimTypeRequirements. Unmark UPN
```
<add claimType="http://schemas.xmlsoap.org/claims/UPN isOptional="true" />
```

Tell WIF to create a Windows Token instead of passing the SAML token to OWA.

microsoft.identityModel –>service-> Add

<securityTokenHandlers>
   <add type="Microsoft.IdentityModel.Tokens.Saml11.Saml11SecurityTokenHandler, Microsoft.IdentityModel, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35">
  <samlSecurityTokenRequirement mapToWindows="true" useWindowsTokenService="true" />
   </add>
</securityTokenHandlers>

Tell WIF to redirect users to your STS /ADFS:

microsoft.identityModel –>service-> Add

<federatedAuthentication>
   <wsFederation passiveRedirectEnabled="true" issuer="https://adfs.phenixid.local/adfs/ls/" realm="https://192.168.0.45/owa/" requireHttps="true" />
   <cookieHandler requireSsl="true" />
</federatedAuthentication>

Save and close web.config.
Restart iis on the MS Exchange server by opening a command prompt and enter “iisreset".
Copy “C:\Program Files\Microsoft\Exchange Server\V14\ClientAccess\Owa\FederationMetadata\2007-06\FederationMetadata.xml" to your ADFS server.
Open ADFS 2.0 Management
Click “Relying party trust"
Click “Add relying party trust"
Select “Import data about the relying party from a file"
Point to the file copied in previous step
Add the following to Rules:
- Pass Through or Filter an Incoming Claim –> UPN
- Incoming claim type: UPN
- Transform an Incoming Claim –> NameID –> UPN
- Incoming claim type: NameID.
- Incoming nameid format: unspecified.
- Outgoing claim type: UPN

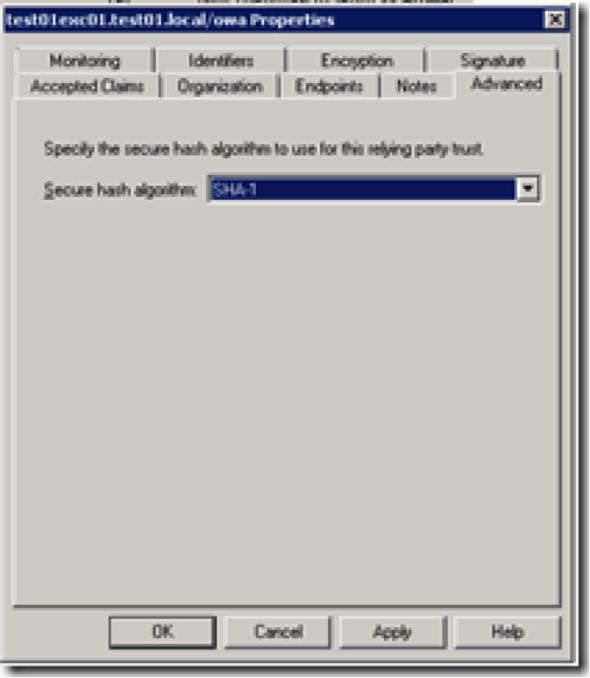

Open properties for your new relying part and change –> Advanced SHA-1

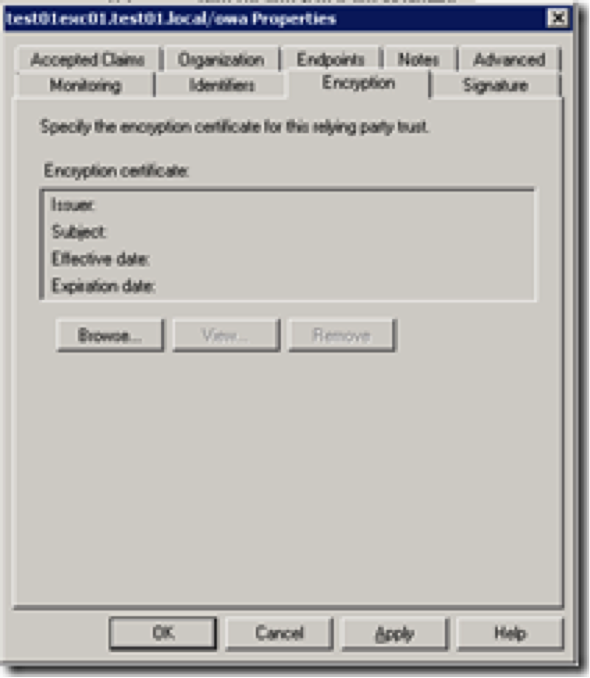

Encryption,. remove it ( if the WIF wizard forced you to choose one )

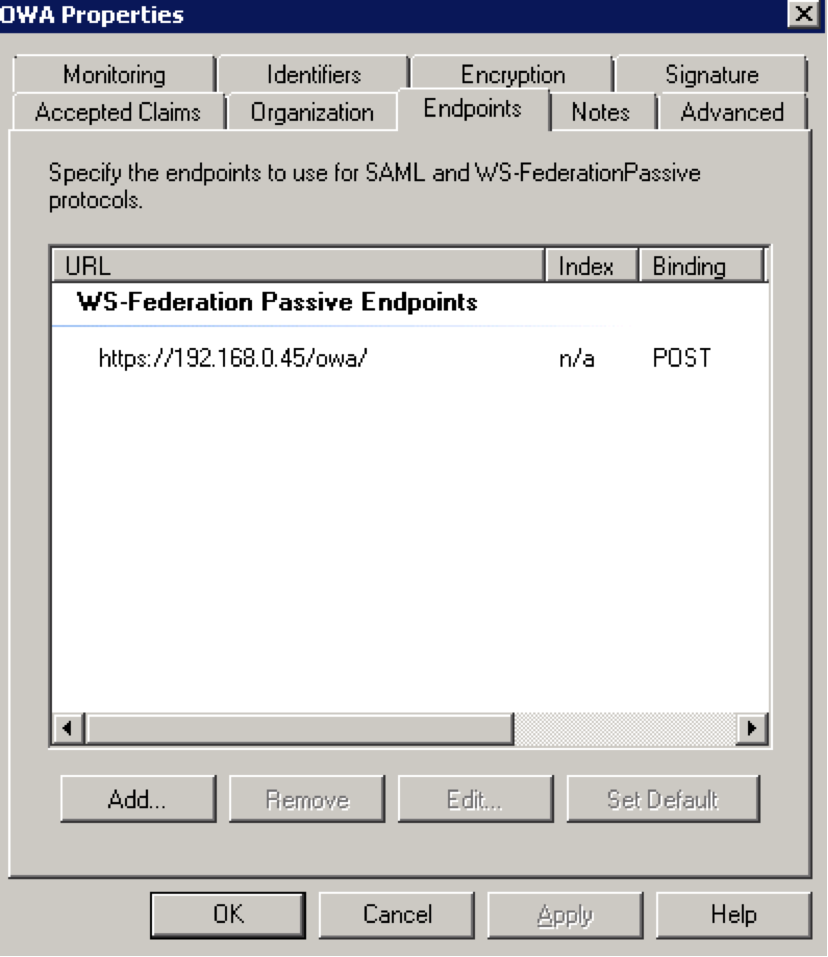

EndPoints –> Add a WS-Federation endpoint
Done!
Test by browsing to owa: https://192.168.0.45/owa
This should result in a redirect to ADFS web page with selection of organizations (IdPs).
Select the Claims provider ID added in previous step
This should result in a redirect to PhenixID Authentication Services authentication page
Authenticate with test user
This should result with a redirect to ADFS (no user interaction needed) and then another redirect to OWA. User is logged in!

Example, Idp pipe in PhenixID Server

{
  "id": "pipeunpwrdweb_demo",
  "valves": [
    {
      "name": "LDAPSearchValve",
      "config": {
        "connection_ref": "MyAD",
        "base_dn": "DC=demo,DC=phenixid,DC=net",
        "scope": "SUB",
        "size_limit": "0",
        "filter_template": "(&(objectclass=*)(sAMAccountName={{request.username}}))",
        "attributes": "userPrincipalName"
      }
    },
    {
      "name": "LDAPBindValve",
      "config": {
        "connection_ref": "MyAD",
        "password_param_name": "password",
        "skip_if_expr": "request.authenticatedrequest==’true'"
      }
    },
    {
      "name": "AssertionProvider",
      "config": {
        "targetEntityID": "PhenixID_IdP_RDWEB_DEMO",
        "nameIDAttribute": "userPrincipalName",
        "sourceID": "http://adfs.demo.phenixid.net/adfs/services/trust",
        "misc": {
          "excludeSubjectNotBefore": "true"
        },
        "audienceRestriction": "http://adfs.demo.phenixid.net/adfs/services/trust"
      }
    }
  ]
}

Test

Browse to https://<rd_web_server>/RDWeb/Pages/
This should result in a redirect to ADFS server
Select organization on ADFS server

(This step can be removed by configuration, https://authenticationfactor.wordpress.com/2014/06/18/adfs-3-0-playing-with-authentication/-> Force specific Claims Provider(s) per relying party) 4. This should result in a redirect to PhenixID Authentication Server 5. Authenticate 6. If authentication was successful, a redirect to ADFS should occur (with SAML assertion) 7. A redirect to RDWeb should occur

Troubleshooting tips

Verify trust between ADFS and PhenixID Authentication Services

Browse to https://<adfs_server>/adfs/ls/idpinitiatedsignon.aspx
Click Sign in
Select organization
This should result in a redirect to PhenixID Authentication Server
Authenticate
If authentication was successful, a redirect to ADFS should occur (with SAML assertion)
ADFS should present “You are signed in"

The file web.config

There are some changes being made to the file web.config.

If there is something wrong in the file, a 500 message will be dislayed.
