IST/Extens MFA and SSO with PhenixID Authentication Services

Summary

This document will guide you through the steps to configure PhenixID Authentication Services to deliver multi-factor authentication and Single Sign-on (SSO) to IST/Extens ( https://www.ist.com/en).

System Requirements

  • PhenixID Authentication Services 2.7 or higher
  • PhenixID Authentication Services configured with a SAML Identity Provider connected to Skolfederation. Follow this step-by-step to add PhenixID Authentication Services to Skolfederation.

Instruction

Configure Execution flow for IST/Extens

  • Login to Configuration Manager

  • Click Scenarios, Federation.

  • Select your previously configured IdP for Skolfederationen.

  • Click Execution Flow

  • Prepare SAML<->User Store attribute mapping for IST/Extens using this guide. The SAML attributes to be sent to IST/Extens:

    • urn:oid:1.3.6.1.4.1.2428.90.1.5
    • urn:oid:2.5.4.42
    • urn:oid:2.5.4.4

  • Expand the last execution flow and look for an existing AssertionProvider

  • Expand the AssertionProvider

  • Copy the Target Entity ID Value

  • Add new valve to the last execution flow (where the SAML Assertion is produced)

    • Type=AssertionProvider
    • Set Target Entity ID to the previously copied value
    • Set NameID attribute = urn:oid:1.3.6.1.4.1.2428.90.1.5
    • Set Additional attributes = urn:oid:1.3.6.1.4.1.2428.90.1.5,urn:oid:2.5.4.42,urn:oid:2.5.4.4

  • On the Advanced tab of the valve you should limit the AssertionProvider to only be executed when authentication to IST/Extens is requested. Add this to Execute if expression:

    flow.property('issuer').equals('https://city-bou.dexter-ist.com/City-bou')

    If you have multiple IST/Extens applications (SP:s) connected, increase the expression. Example:

    flow.property('issuer').equals('https://city-bou.dexter-ist.com/City-bou') || flow.property('issuer').equals('https://fortboyard-bou.dexter-ist.com/Fortboyard-bou')

    The expression should be changed for your IST/Extens application(s) as that/those will have different issuer (entityID) values.

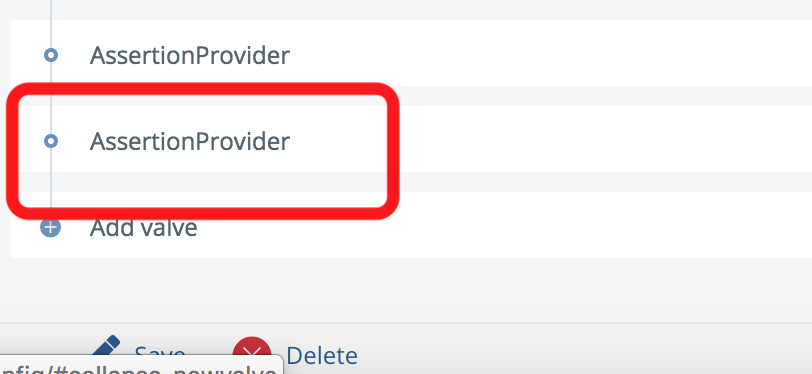

  • Save. Make sure the new AssertionProvider added is placed last in the Execution flow list.

    NA

Test

  • Open a browser and open the IST/Extens authentication trigger URL.
  • Your browser should be redirected to the PhenixID IdP
  • Authenticate
  • Verify that you are redirected to the IST/Extens application after login with a valid SAML Assertion. Please consult PhenixID for additional debugging if needed.
